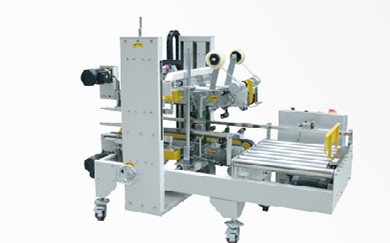

Automatic Edge Carton Sealing Machine



Machine Description and features:
(1) FX-JB01 carton sealer is easy to operate and maintain. Equipped with top bottom-side driving system, seal the carton edges, and sealing speed can reaches up to 6 cartons per minute.
(2) This machine is designed for simple, economical and durable, safe, low failure rate based.
(3)According to carton width and height. Manual adjust the machine
(4)Carton into the 90degree forward body, push the box from the corner into the side sealing machine, automatic carton sealing both the upper and lower side corners
(5)Sealing beautiful, fast, labor-saving, high efficiency
(6)Equipped with blade guards to prevent accidental stabbed during the operation
Technical  Specification

Model

FX-JB01

Speed

250-360 cartons/hour (up to carton size)

Max.Carton Size

L500*W500*H500mm

Min.Carton Size

L280*W150*H150mm

Power Supply

220V/380V, Single Phrase-Three Phrase, 50-60HZ

Air Pressure

6kg/cm3

Tape Size

Width 48mm-W60-75mm*L1000 Yards

Machine Size

L1900*W1130*H1530mm

Machine Weight

400kg

                            This is standard specification and customized as order
